Pellet Mill for Soft Wood
This pellet mill is used to process softwood such as straw, pipe wood, peanut shell, stalk etc.
The advantage of these pellet mills is lower cost and easy to operation. They are the ideal pellet mill for individual to make biomass wood pellets for their own use. There is wheel under the pellet mills which can be move to farm or field, and then it will save the cost of raw material transport. Moreover, it is no need to build the workshop which can save the investment.
The pellet mill can divided into electric pellet mill,diesel pellet mill and gasoline pellet mill. When you move it to field of raw material, you can match it with diesel engine. It is no limited if there is no three phase motor.
The power of small pellet mill is low, so its energy consumption is much less than ring die pellet mill.
Flat DIe Pellet Mill for Softwood with Motor Engine:
Parameters of Pellet Mill for Softwood:
|
Model
|
Capacity(KG/H)
|
Power(KW)
|
Net Weight(KG)
|
Dimension(MM)
|
|
ZLSP D-Type200B
|
100-150
|
3-Phase, 7.5kW
|
230
|
1000*430*950
|
| ZLSP D-Type230B | 150-200 | 3-Phase, 11kW | 320 | 1140*470*970 |
| ZLSP D-Type260B | 200-300 | 3-Phase, 15kW | 360 | 1200*500*1070 |
| ZLSP D-Type300B | 350-400 | 3-Phase, 22kW | 450 | 1270*500*1070 |
| ZLSP D-Type360B | 400-450 | 3-Phase, 22kW | 500 | 1270*520*1070 |
| ZLSP D-Type400B | 450-500 | 3-Phase, 30kW | 585 | 1470*600*1150 |
Video of pellet mill for softwood:
Pellet Mill for Softwood with Diesle Engine:
|
Model
|
Capacity(KG/H)
|
Power(KW)
|
Net Weight(KG)
|
Dimension(MM)
|
|
ZLSP D-Type200A
|
120-180
|
15HP Diesel
|
240
|
1180*560*950
|
| ZLSP D-Type230A | 180-220 | 22HP Diesel | 310 | 1180*560*1020 |
| ZLSP D-Type260A | 230-330 | 35HP Diesel | 490 | 1840*700*1160 |
| ZLSP D-Type300A | 380-450 | 55HP Diesel | 560 | 2200*600*1230 |
| ZLSP D-Type400A | 450-550 | 55HP Diesel | 790 | 2270*620*1260 |

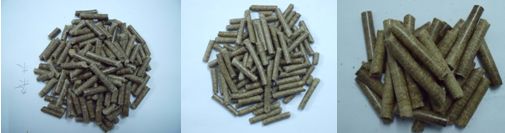

The Photos of final wood pellets:
Sawdust Peanut Shall/Bamboo
