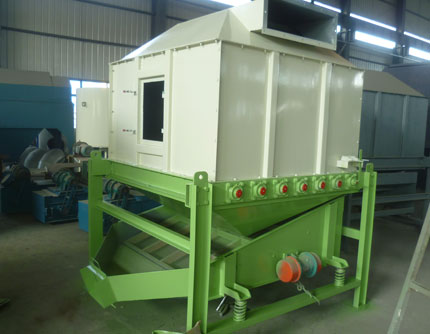

Coolers
Recently produced pellets from the wood pellet mill may be 90 degrees Celsius with a 17 to 18 moisture content. The temperature must be quickly brought down, and the moisture content must be reduced to less than 12 percent for storage and handling. Our cooler manages both of these processes simultaneously.
|
|
|
Structure of our cooler (smallest model)
| 1. Closed feeder |
2. Feed inlet | 3. Fixed support plate |
| 4. Exhaust inlet |
5. Material level controller | 6. Main body |
| 7. Air inlet cone |
8. Discharger | 9. Motor |
Parameters of our SKLN Series Counterflow Cooler:
|
|
 |
|
Model |
SKLN0.8 |
SKLN11*11 |
SKLN15*15 |
SKLN16*16 |
SKLN19*19 |
SKLN19*24 |
|
Capacity (t/h) |
0.6 t/h |
2-3 t/h |
4-5 t/h |
6-7 t/h |
8-10 t/h |
12-15 t/h |
|
Power (kw) |
0.25+0.25 |
0.75+0.55 |
0.75+0.75 |
1.1+0.75 |
1.1+0.75 |
1.5+1.1 |
