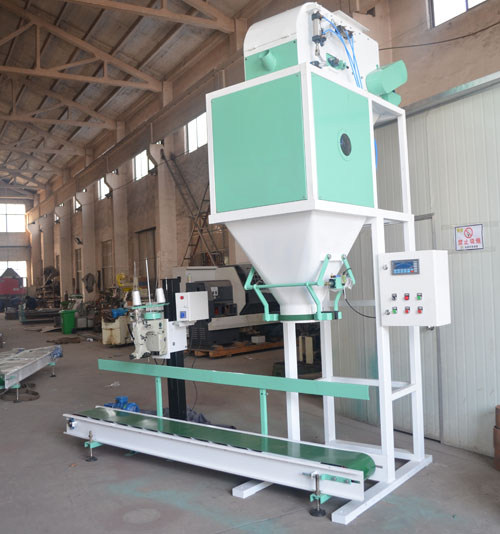

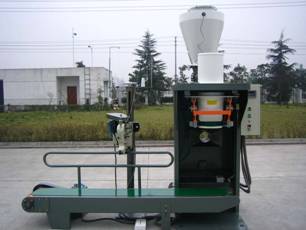

Packing Machines
Packing is the final process in pellet production. This automated machinery is comprised of storage bins and a sealing machine. The computerized system weighs the finished pellets before sealing, then discharging the bags. A conveyor moves the bags for storage at the desired location.
 |
 |
 |
Technical Parameters:
|
Precision |
+/-0.2% |
|
Packing speed |
100~200 bags per hour |
|
Weight |
10-30 kg per bag |
|
Power Supply |
220 V a.c. and 4N-380 Va.c. |
|
Power Dissipation |
1.5 kW |
|
Compressed Air |
0.4-0.6 MPa |
|
Compressed Air Consumption |
0.5 m3 per hour |
Main Structures:
1. Auto filling system
2. Auto weighing
3. Auto belt conveyor
4. Semi-automatic hot sealing machine (utilizes foot switch)
5. Electronic control box and computer control box

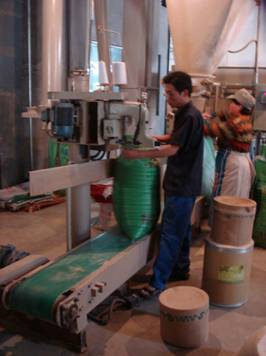

Packing Process:
Manual bag placement-->Auto filling-->Auto weighing-->Auto bag discharge-->Auto conveying-->Semiautomatic hot sealing
Key Parts:
|
NO. |
Parts |
Type |
Brand |
Country of Origin |
|
1 |
Weight sensor |
IL-250 kg |
Mettler-Toledo |
USA |
|
2 |
Material level sensor |
CS-16-5T |
KOYO |
JAPAN |
|
3 |
Cylinder |
ST/CB |
AirTac |
TAIWAN |
|
4 |
Magnetic valve |
MV220-4E1 |
||
|
5 |
Oil-water seperator |
UFR/L04 |
||
|
6 |
Controller |
DCS25 |
|
|
