Shredders And Crushers

The FSJ-II Hammer Mill is suitable for processing raw materials like tree branches, cotton stalks, corn stalks, straw, etc., less than 50 mm in diameter. The hammer mill reduces then reduces these materials to between 3 and 5 mm in diameter, an appropriate size for further pelletization.

The FSJ-I Wood Crusher is suitable for crushing raw wood less than 200 mm in diameter. The crusher is able to bring larger raw materials down to the needed size for pelletization of between 3 to 5 mm.

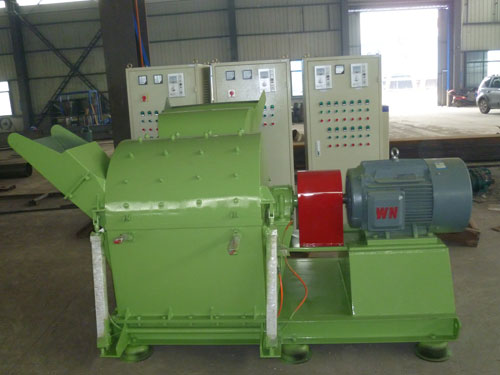

FSJ-I Crusher

 Hammer mill



                     Model

FSJ-I Crusher

FSJ-II Hammer mill

(For wood)

(For branches, stalks, etc.)

Capacity

700 kg/h

900 kg/h

Feed diameter

≤ø200 mm

≤ø50 mm

Diameter of output

Ø3 mm

Ø3 mm

Motor

11 kW

18.5 kW

Weight

400 kg

650 kg

Overall dimensions (mm)

1250*700*910

1700*1150*1200+
2400*800*800(cyclone)

The TFS Series Hammer Mill can process biomass materials less than 40 mm in diameter.

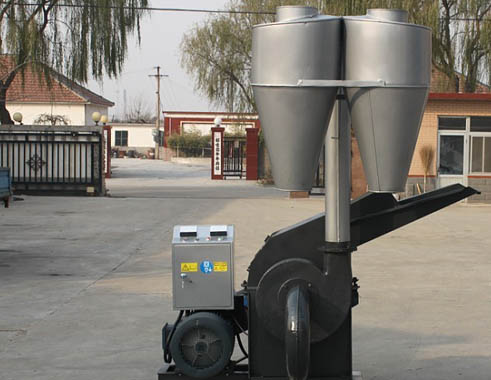

hammer mill with cyclone

 straw hammer mill



Type

Power

Capacity
(kg/h)

Dimensions (mm)

TFS420 Hammer Mill
With Cyclone

7.5 kW

900

1090×820×1100

TFS420 Hammer Mill
With Cyclone

11 kW

1100

1090×820×1100

TFS420A Hammer Mill
With Cyclone

15 hp diesel engine

1200

1090×820×1100

TFS420A Hammer Mill
With Cyclone

22 hp diesel engine

1400

1090×820×1100

TFS500
Hammer Mill
With Cyclone

22 kW

1300

1090×820×1100

TFS500A
Hammer Mill
With Cyclone

55 hp diesel engine

1600

1090×820×1100
