Diesel Pellet Mills
Flat die pellet mills with diesel engines are popular in areas that lack electricity, or on farms with raw materials supplies far away from a power source. Other than the smallest models—the ZLSP120A and the ZLSP150A—our mills are able to process a wide range of biomass materials without the need of a binder or chemical additives.
 |
 |
 |
The first two models listed here are used to process animal feed.
|
Type
|
Power (kW)
|
Capacity (kg/h)
|
Packing
Dimensions (mm) |
NG/GW(kg)
|
|
ZLSP120A D-Type
|
8 hp diesel
|
75-100
|
870x440x730
|
120/140
|
|
ZLSP150A D-Type
|
8 hp diesel
|
75-100
|
870x460x730
|
130/150
|
Others can process a wider range of raw materials.
|
Type
|
Power (kW)
|
Capacity (kg/h)
|
Packing
Dimensions (mm) |
NG/GW (kg)
|
|
ZLSP200A D-Type
|
15 hp diesel
|
120-180
|
1180×560×950
|
210/240
|
|
ZLSP230A D-Type
|
22 hp diesel
|
180-220
|
1180×560×1020
|
280/310
|
The capacity for these three models listed below applies to sawdust. When making pellets out of material for animal feed, the capacity will be 50% greater than that stated here.
|
Type
|
Power (kW)
|
Capacity (kg/h)
|
Packing
Dimensions (mm) |
NG/GW
(kg) |
|
ZLSP260A D-Type
|
35hp diesel
|
230-330
|
1840x700x1160
|
460/490
|
|
ZLSP300A D-Type
|
55hp diesel
|
380-450
|
2200*600*1230
|
520/560
|
|
ZLSP400A D-Type
|
55hp diesel
|
450-550
|
2270×620×1260
|
750/790
|

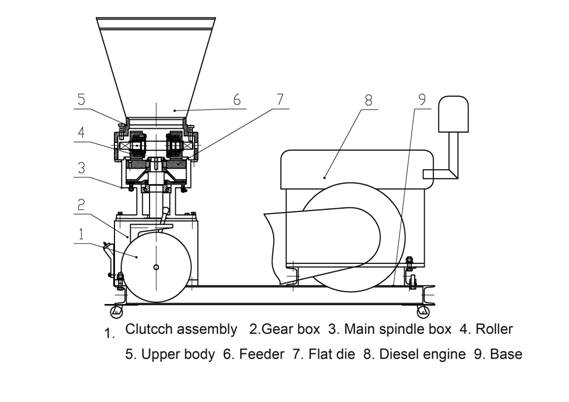

Structure of diesel pellet mill
Portability: adding a power take off device
This machine can be equipped with a power take off device and connected to a tractor, thereby adding mobility.
