Biomass Pellet Mills
Biomass pellets, made from waste wood, corn stalks, straw, cassava stalks, sawdust and other materials, enjoy widespread use around the world. The fuel is used to heat households and to generate electricity in thermal power plants.
Biomass pellets are carbon neutral, in that burning the pellets releases carbon dioxide which would have nonetheless entered the atomosphere naturally. This contrasts with burning fossil fuels. Pellets not only are a cheap way to reduce heating costs but are better for the environment.
ZLSP R-Type Pellet Mill (Spinning Roller)
Our biomass pellet mills are used to compress wood—solid wood, tree trimmings, wood chips, sawdust, straw, bark and shavings—without additives to make dense, uniformly sized, high quality pellets. The main advantage of ZLSP R-type pellet mill is that it can produce pellets without the need of a binder, with only one pressing. It is the ideal pellet mill to process sawdust and hard materials due to this high level of efficiency.

|
Type |
Capacity (kg/h) |
Power (kW) |
Dimensions (mm) |
NG/GW |
|
ZLSP-200 R-Type |
100-200 |
7.5, 3 phase |
1150*560*750 |
300 |
|
ZLSP-300 R-Type |
250-350 |
22, 3 phase |
1350*650*800 |
420 |
|
Type |
Capacity (kg/h) |
Power (kw) |
Dimensions (mm) |
Weight (kg) |
|
ZLSP-350 R-Type |
450-500 |
30, 3 phase |
1650*1000*1200 |
800 |
|
ZLSP-450 R-Type |
600-700 |
37, 3 phase |
1800*1100*1350 |
1100 |
|
ZLSP-550 R-Type |
850-1000 |
45, 3 phase |
2000*1000*1500 |
1500 |

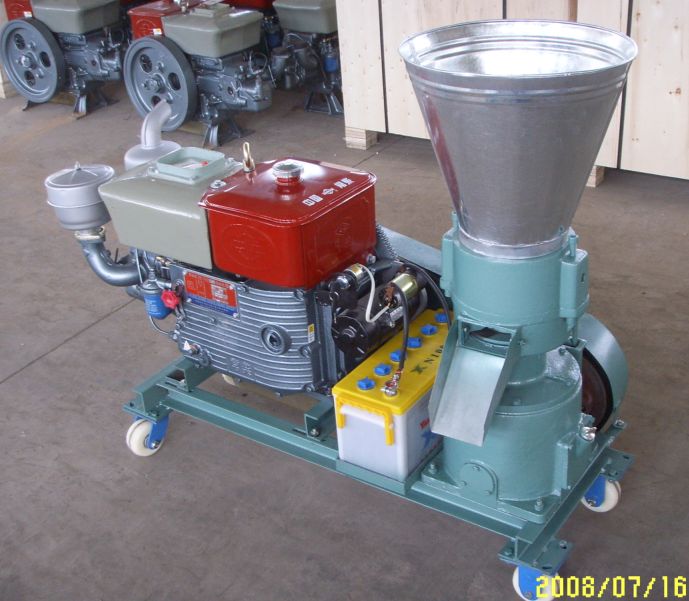

ZLSP D-Type Pellet Mill (Spinning Flat Die)
These biomass pellet mills are also used to compress agricultural wastes without a binder. It is a cheaper model than the R-type, although is less efficient in processing hard wood.
|
|
|
|
|
|
|
|
|
|
|
|
|
Type |
Capacity (kg/h) |
Power (kW) |
Dimensions (mm) |
Weight (kg) |
|
ZLSP200B D-Type |
100-150 |
7.5, 3 phase |
1000*430*950 |
230 |
|
ZLSP230B D-Type |
150-200 |
11, 3 phase |
1140*470*970 |
320 |
|
ZLSP260B D-Type |
200-300 |
15, 3 phase |
1200*500*1070 |
360 |
|
ZLSP300B D-Type |
350-400 |
22, 3 phase |
1270*520*1070 |
450 |
|
ZLSP360 D-Type |
400-450 |
22, 3 phase |
1270*520*1070 |
500 |
|
ZLSP400 D-Type |
450-500 |
30, 3 phase |
1470*600*1150 |
585 |
|
|
|
|
|
Type |
Capacity (kg/h) |
Power |
Dimensions (mm) |
Weight (kg) |
|
ZLSP200A D-Type |
120-180 |
15 hp diesel |
1180*560*950 |
240 |
|
ZLSP230A D-Type |
180-220 |
22 hp diesel |
1180*560*1020 |
310 |
|
ZLSP260A D-Type |
230-330 |
35 hp diesel |
1840*700*1160 |
490 |
|
ZLSP300A D-Type |
380-450 |
55 hp diesel |
2200*600*1230 |
560 |
|
ZLSP400A D-Type |
450-550 |
55 hp diesel |
2270*620*1260 |
790 |
